Up2Stream Mini - Multiroom Wi-Fi Streamer Board (No Amp)

Sale price$39.00

-WiFi, Airplay, Spotify Connect, Bluetooth 5.0, DLNA, UPnP wireless connectivity support.
-Plug and Play, quick connection, no pins soldering.
-Decoding up to 192khz/24bits, support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
-Support Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio and more.
-Sync audio or play different songs at the same time with multiroom streaming.
-Convenient, full wireless control by FREE iOS & Android 4STREAM app.

In stock
✔Fast & Free Shipping Over $90
✔We pay sales tax, if applicable
✔FREE & Easy 30 Days Return
✔Solid 1 Year Warranty
✔Official Website Promise
✔Online Expert Support
✔Fast & 3D Secure Payments

A QUESTION? CONTACT OUR EXPERT

Features

Wireless Connectivity

Up2stream Mini supports WiFi and Bluetooth 5.0, allowing for easy streaming of music from various sources such as smart phones, tablet, laptop, and computer within your local network. Additionally, the device supports popular protocols such as Airplay, Spotify connect, DLNA, and UPnP, providing seamless wireless music streaming capabilities.

Plug and Play

With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a powered speaker or an amplifier. Unlike other audio boards, there's no need for soldering of pins before you can get started. This makes it incredibly easy and user-friendly for anyone to use.


Lossless Audio

The Up2stream Mini is capable of supporting a wide range of lossless audio formats, such as FLAC, MP3, AAC, AAC+, ALAC, APE, and WAV. Additionally, it can decode up to 192kHz/24bits and deliver CD quality audio output of 44.1kHz/16bits.


Music Services Support

Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise, and more with future update.


Versatile Music Sources

The Up2stream Mini offers versatile streaming options, allowing you to easily stream music from various sources such as music services, NAS, phone storage, SD card, and other 3rd-party apps that support Airplay, DLNA, and UPnP protocols. This provides you with a wide range of choices when it comes to selecting your preferred music source.

Additionally, the device comes with Bluetooth 5.0, enabling you to stream audio from your smart devices seamlessly. This means you can enjoy your favorite music on the go, without the need for any additional cables or devices. With its multiple streaming options, the Up2stream Mini makes it easy to enjoy high-quality sound from a variety of sources.

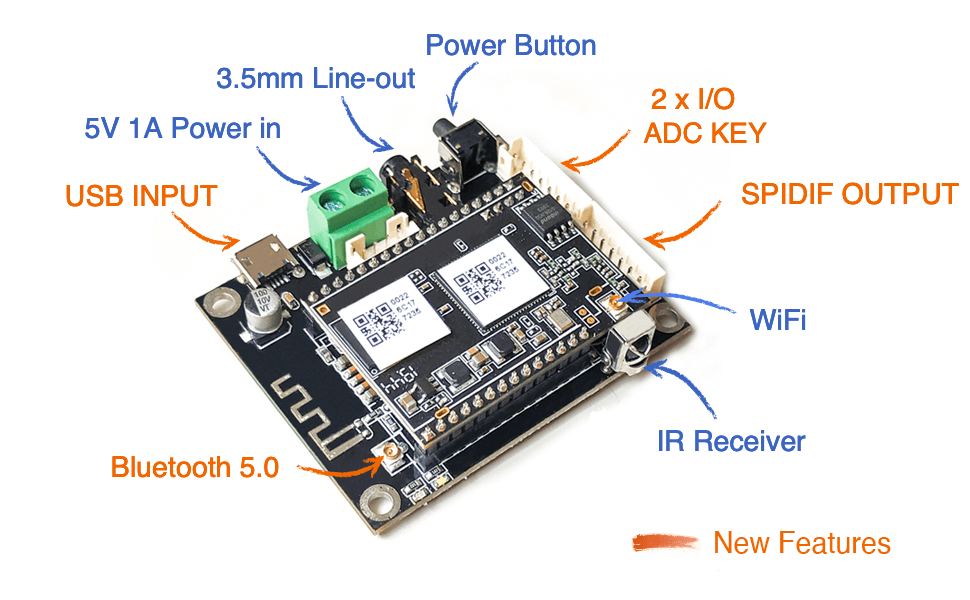

Multiple Interfaces

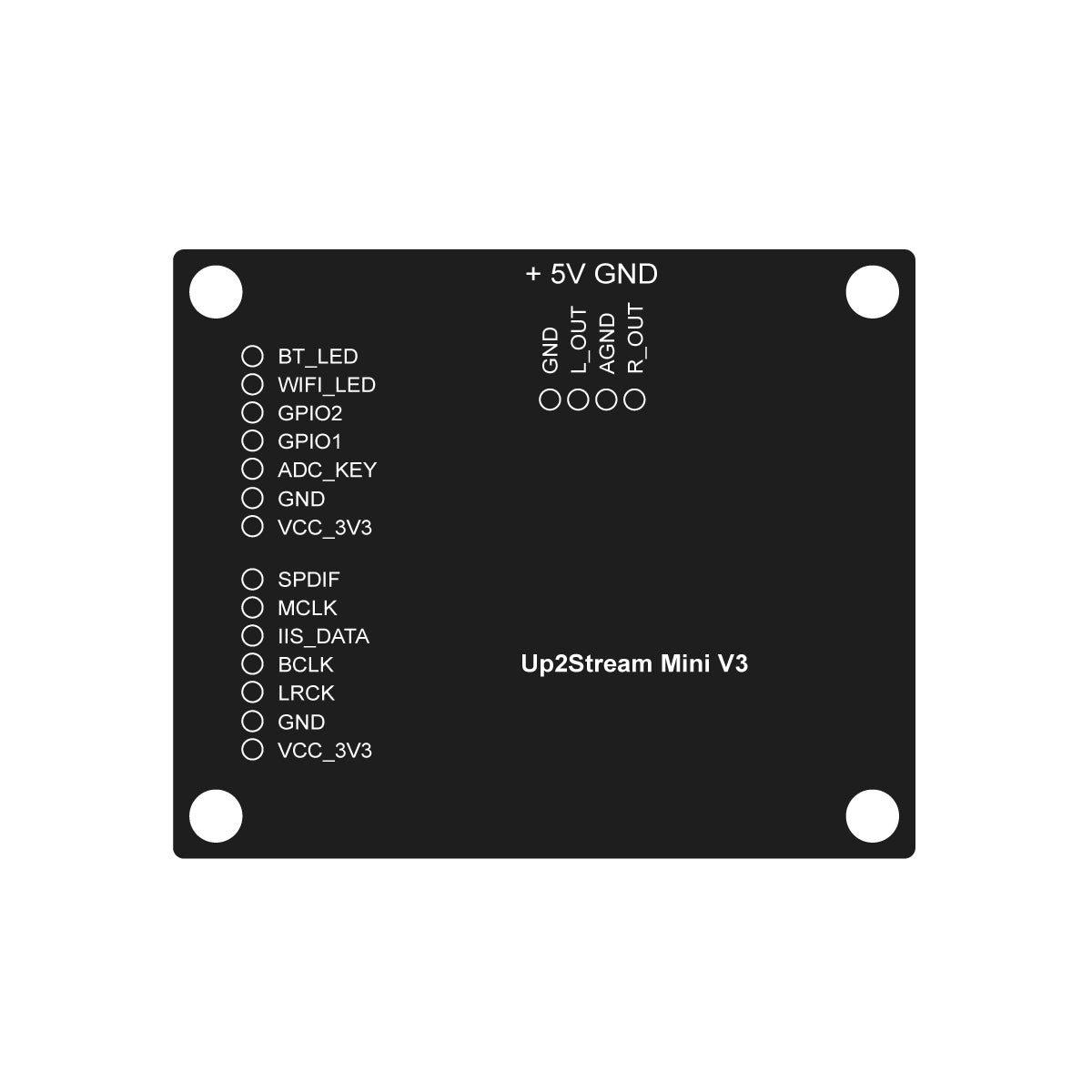

The Up2stream Mini comes with a range of ready-to-use interfaces, including a 3.5mm line out, micro USB audio input, and a plug for SPDIF out, IIS out, Line Out, LED Indicator, and ADC-key. Which enables you to create a flexible system according to your specific needs. With these features, you can easily connect your audio devices and enjoy high-quality sound without any complicated setup.


Multiroom/ Multizone

If you have multiple Arylic streaming devices installed in different rooms, you can easily group them together into different groups and stream music to a master device, which will sync the same music to all other devices in that group.

Alternatively, you can also choose to play different songs at the same time throughout your house, providing a personalized listening experience for each room. With this feature, you can easily control and customize your music streaming experience based on your preferences and needs.


4STREAM APP

The 4STREAM APP is a powerful and convenient tool and free iOS& Android app that allows you to fully control your Arylic devices wirelessly. With this app, you can do music services playback, NAS/local files playback, preset content, mode swtich, Multiroom/Multizone control, EQ control, alarm clock, WiFi connection. With its user-friendly interface and comprehensive control features, the 4STREAM APP makes it easy to enjoy your music, your way.


Web Control

The Arylic streaming devices come with a unique feature that allows you to quickly access them by inputting the device's IP address into your browser. This means you don't need to install any app or software to access the device's settings. Using this feature, you can easily set your preset content, EQ controls, playback options, and even update the device's firmware. With this feature, you can quickly access and control your Arylic streaming devices, making it easy to enjoy high-quality audio with minimal setup time.


Enhanced Up2stream

The Up2stream Mini offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2stream SPDIF board, Up2stream button board, Up2stream ESS9023 DAC board, Up2stream IR extension board, and Up2stream volume knob board. Each of these expansion boards provides unique features and capabilities that can be used to customize and improve the performance of your Up2stream Mini device. You can find all the boards in Accessories.


USB Sound Card for PC

Once you connect the Up2stream Mini to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2stream Mini. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.


ACPWorkbench Tuning Tool

Our proprietary ACPWorkbench software provides a powerful tool to customize and optimize the DSP settings of each unit of the Arylic streaming devices. This software allows you to adjust a range of settings, including L/R balance, frequency of every channel, pregain, and more. By fine-tuning these settings, you can achieve optimal audio performance and tailor the sound to your preferences.

In addition to DSP settings customization, the ACPWorkbench software also supports local firmware updates, define pins and configure other settings.


Smart Home Assistant Integration

The Up2stream Mini offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications. Get API files below in the download portion and check the cases in our forum.


Easy WiFi SSID & BT Name Change

With the 4STREAM app, you can rename your Arylic streaming device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, until you change it again.

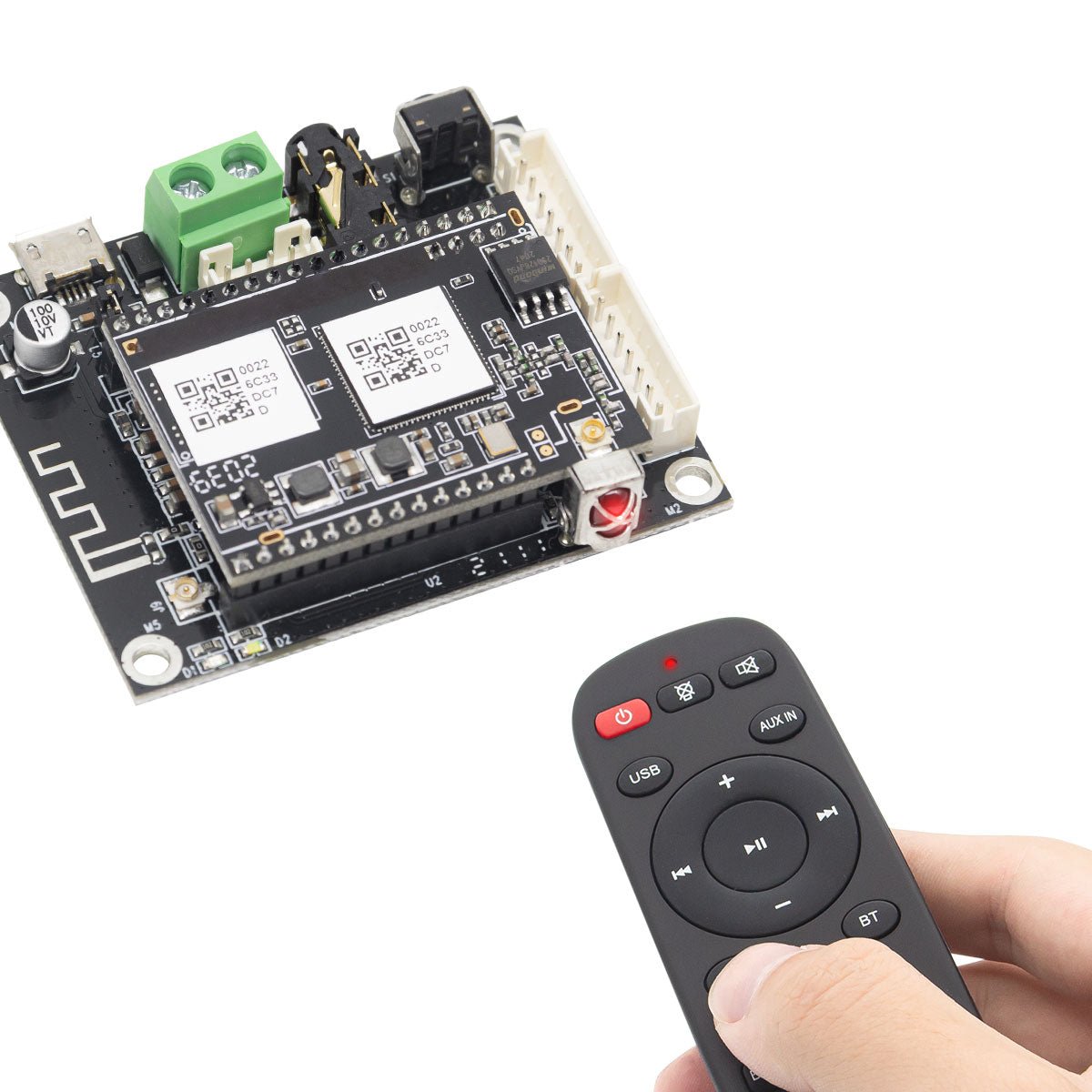

Optional Remote Control

The optional remote control is a useful addition to the Up2stream Mini, providing an easy and convenient way to control your music playback from a distance. Like play/pause, deep bass, adjust volume, and quick switch preset content from a distance.

Whether you're listening to music in your living room or in another part of your home, the remote control makes it easy to adjust your settings and enjoy your music to the fullest.

Specification

*1. Warning: Up2Stream Mini must use 5V-1A DC input, higher voltage power
supply may damage the board.


*2. Up2stream Mini need ACPWorkbench tuning tool to switch the spdif configuration from spdif out to spdif in.

Newest Firmware Version

4.6.415145.35

Wireless Network

IEEE 802.11 b/g/n 2.4G

Bluetooth

5.0 SBC/AAC, 15M, BT Receiver

Power Input *①

5V-1A 2 pin connector
5V-1A micro USB input

Audio Input

Micro USB Input

Audio Output

Analog:
3.5mm Line Out (1 Vrms)
4 pin connector Line Out (1 Vrms)

Digital:
I2S Out,
*②SPDIF Out (44.1KHz)

Compare

Which Music Streamer Board Are Made For You ?

Not sure which one to choose? We selected all of our music streamer boards. Compare them and choose the best version for your needs.


① Up2stream Mini V3 need ACPWorkbench tuning tool to switch the SPDIF configuration from SPDIF out to SPDIF in.
② If you want to use the expansion boards(*② in the table) on Up2stream HD DAC, you need to wire to correspond pins by yourself.

Wireless Capability

WiFi, Airplay 1, Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA

WiFi, Airplay 1, Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA

WiFi, Airplay 2, Spotify Connect, Tidal Connect, Qplay, aptX HD Bluetooth 5.0, UPnP, DLNA

Wired Network

None

Ethernet RJ45

Ethernet RJ45

Multiroom

Yes

Yes

Yes

Music Service

Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Spotify, Amazon Music, Deezer, TuneIn,
Tidal (HiFi), Qobuz (HD), Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Power Input

5V/1A Micro USB

5V/1A Micro USB

5V/2A Type-C

Analog Audio Input

None

Aux In(3.5mm Jack & Pin)

Aux In (Pin)

Digital Audio Input

USB DAC

USB DAC

Spdif In (Pin)

Analog Audio Output

Aux Out (3.5mm Jack & Pin)
DAC: Integrated

Aux Out (3.5mm Jack & Pin)
DAC: Integrated

RCA (RCA & Pin)
DAC: ES9038Q2M

Digital Audio Output

I2S Out(Pin)
Spdif Out(Pin)

I2S Out(Pin)
Spdif Out(Pin)

I2S Out(Pin)
Spdif Out(Opt & Coax)

Audio Format (Up To)

44.1khz/16bits(CD)

44.1khz/16bits(CD)

192khz/24bits (Hi-Res)

USB Playback

None

Yes

Yes

ACPWorkbench

Supported

Supported

None

Web Control

Yes

Yes

None

Remote

Optional

Optional

Optional

Expansion Boards

*①Spdif In Board
Spdif Out Board
DAC Board
Button Board
Volume Knob Board
IR Sensor Board

*①Spdif In Board
Spdif Out Board
DAC Board
Button Board
Volume Knob Board
IR Sensor Board

*②Spdif In Board
*②Spdif Out Board
*②Button Board
*②Volume Knob Board
*②IR Sensor Board
Display Panel

Suggestion

For single wireless projects

For Multiroom and Multi zone receiver Projects

For Airplay 2 Projects or better sound performance.

Build Your Wireless Projects

wireless speaker

Wireless Speaker

Shared by Gary Ingram

diy suitcase speaker

Wireless Suitcase Speaker

Shared by Maarten Hekman

diy amplifier

Upgrade Your Amplifier

Shared by Simon Baynes

diy multiroom audio

DIY Multiroom Audio

Shared by Stefano

Compatible Accessories

Up2stream Acrylic caseAcrylic case
Sale priceFrom $7.90
ESS9023 DAC boardbutton board
Sale priceFrom $10.00
ACPWorkbenchDSP tool

FAQ

Can't find your question? Contact us with the button below.

Our customer support is available Monday to Friday: 9am-6:00pm.(HKT)Average answer time: 24h
Contact Us

Customer Reviews

Based on 292 reviews
93%
(273)
6%
(17)
1%
(2)
0%
(0)
0%
(0)
L
Luca Tulipani
Almost perfect

It's a very valid product easy to setup and use. I already have 4 in my house. To be perfect I would love to see an official home assistant integration developed by arylic and also an landscape mode in the android app.

P
Peter Taylor
Simple device for a simple purpose

This up2stream mini was paired with a bookshelf setup that had an integrated amp. Coming from a dying original chromecast audio, switching to this was almost seamless. I was even able to recycle the old chromecast connectors.
If you use major streaming platforms for music like Spotify or Apple Music, you don’t even need to keep the 4share app on your device after setup. I am happy to have one less google thing and also one less app overall on my devices.
The connectivity is instant when going to use it. No lag, no having to redo connections like I was having to do with my chromecast. Bluetooth is there if you need it, but I specifically picked this because of the wifi - no messing with signal due to physical barriers.
The optional acrylic casing is worth it if you intend to have it freestanding and don’t want to mess with measuring and cutting your own.
It’s really cool to have a readymade device with optionality to be built into future applications if I wanted, while also being good at being a pre-amp receiver right out of the box, all for such a low cost.

A
Andrey Smirnov
Up2Stream mini and old radio of 1953

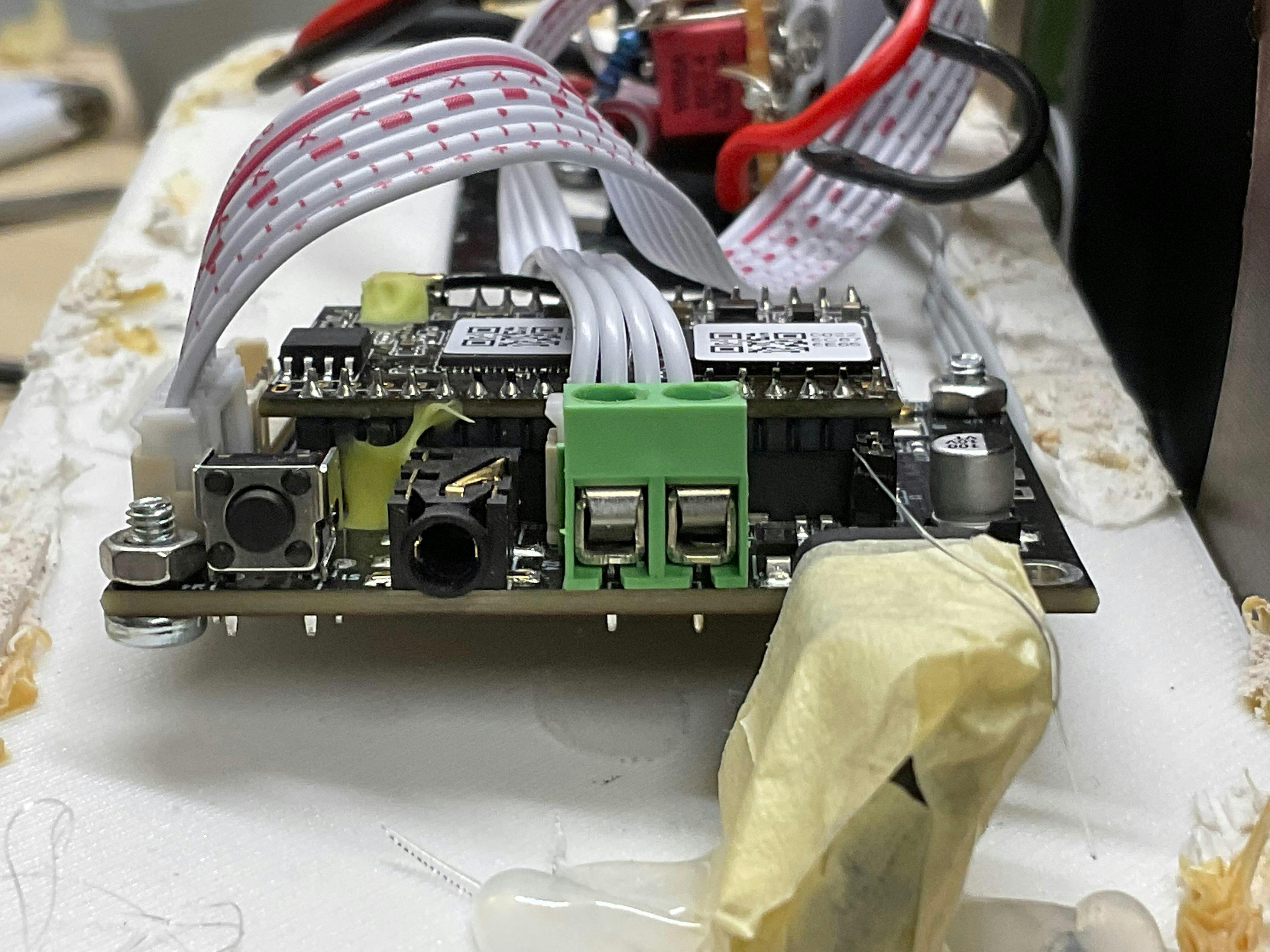

I purchased this card and connected the pickup to the 1953 retro radio without any problems. The sound is amplified through the original tube amplifier. Everything is fine, the sound is great. It is a pity that Russian radio stations are not working.
